LabTool-T400 Turbo Flash Gang
Programmer- NAND Flash專燒工具
|
|
LabTool-T400 為利用電腦介面,
具有4個獨立模組的超大容量Flash Chip 專用型燒錄器. 透過4個獨立模組將程式以極高速寫入
Flash Chip. 在不使用低電壓變壓器下, 支援 3.3V, 2.7V, 1.8V 與 1.2V
等雙電壓 (VCC/VIO) Chip, 並透過不同轉(zhuǎn)接座模組燒錄 8/16/32bits 不同包裝形式
Flash Chip, 至128Gb ...
|
|
LabTool-T400 Option 100
|
|
|
-

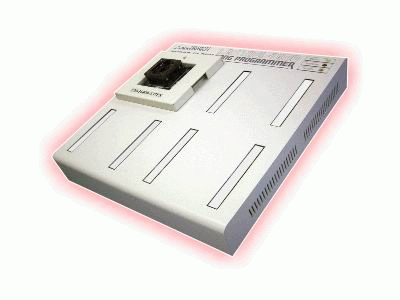

The LabTool-T400 Option 100 is a
shirk version of LabTool-T400
with affordable price.
-
The Option 100 remove three set
of pin driver on T400 only one
set pin driver left on T400 ,
The LabTool-T400 Option 100 is
idea solution to customer in R/D
who need to program very high
density Flash chip with low
voltage such as 3.3V , 1.8V and
1.2V. those high density and low
voltage do not support by
Labtool-48UXP.
-
LabTool-T400 option 100 can be
upgrade to full function
LabTool-T400 later on by
purchase extra three set of pin
driver and filed install by
customer.
|
|
| |
|
Features
|
- Support 3.3V to 1.2V flash
memory chip in VCC and I/O without low
voltage converter.
- Flash chip support up to
128G bit.
- Extremely high speed: it
blank check a 64M bit flash chip in 1.6
seconds, program the STM28W640CT (4 word
programming algorithm) within 11.5 seconds,
verify within 3.2 seconds.
- USB interface: support USB
1.1 or 2.0
- One PC can connect up to 16
unit Labtool-T400 to perform Asynchronous
programming
- Device insertion /continuity
check before programming.
- Target quantity and Max
failure rate alarm.
- Supports Windows 98SE/Me,
Windows 2000 and windows XP
|
| |
|
Introduction
|

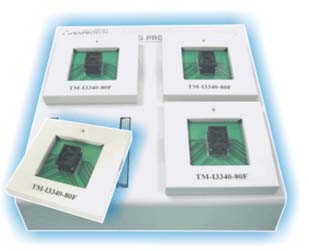

- LabTool-T400 Turbo Flash Gang Programmer
is four sockets PC-based Gang Programmer. It
features four independent isolated modules,
extremely high speed in writing flash memory
chip. It supports 3.3V, 2.7V, 1.8V and 1.2V
chip in both VCC and I/O without low voltage
converter and handles 8/16/32 bit flash chip
in different package through adapter
modules, up to 128Gb flash can be support.
The LabTool-T400 is an ideal programmer for
customers in GSM, 3G Mobile, PDA, Internet
router and others.
|
| |
|
Unbeatable programming speed
and throughput
|
- The LabTool-T400 has build in Compact
Flash Card (CF) on board that reduce the
massive data transfer between the PC and
LabTool-T400 .The LabTool-T400 performance
reach the speed limitation of the chips in
its spec. No other gang programmer today and
future can beat the speed of the
LabTool-T400.
|
| |
|
LabTool-T400 performance ( PC with P4 1.3G 128M
RAM)
|
|
|
|
STM 4 word algorithm
|
Intel EFP algorithm
|
Spansion word algorithm
|
|
|
Blank check |
1.65s per 64Mb
|
1.65s per 64Mb
|
1.65s per 64Mb
|
|
|
Programming |
11.5 sec per 64Mb
|
16.6s per 64Mb
|
29.5s per 64Mb
|
|
|
Verify |
3.2s per 64Mb
|
3.2s per 64Mb
|
3.2s per 64Mb
|
|
|
Total |
M28W640E in 16.3 sec
|
GE28F640W30B in 21.4 sec
|
Am29DL640G in 34.5 sec
|
|
| |
|
3.3V to 1.2V chip in VCC and I/O support
|
- The LabTool-T400 use the 90nm FPGA chip
in hardware design, it can handle the chip
from 3.3V to 1.2V in both VCC and I/O
without need special low voltage converter
circuit. This new technology fulfils
customer's need and makes customer's
investment fully protected.
|
| |
|
High density chip support
|
- The LabTool-T400 has reserved the growth
potential in chip's density. It covers 8/16
bit flash today and future's 32 bit flash
chip. Its I/O pin driver can cover flash
with Max 128G bit in density. This growth
potential protected customer's investment
without purchasing a new generation
programmer over a decade in future.
|
| |
|
Expansion through USB Hub and configure as a
Multi-station Asynchronous Gang Programmer
|
- The LabTool-T400 interface with PC
through USB interface, which support USB 1.1
and 2.0. If customer needs more units in
production, just purchase extra LabTool-T400
and connect those LabTool-T400 through USB
Hub, up to 256 LabTool-T400 can be attached
to one PC. Recommend with 8-16 unit
LabTool-T400 control by one PC to avoid
performance decrease. Such configuration has
significantly reduces the cost per station
with low initial purchase cost and growth
potential in future.
|
| |
|
|
- The LabTool-T400 adapter module has
independent ID. After inserting the
module in the LabTool-T400, the system
will detect the module's ID and compare
the corresponding adapter modules with
the chip select in software. This future
prevents the wrong adapter module insert
or wrong chip selection in operation.
|
| |
|
|
| |
|
Device support
|
- Flash memory: include NOR , NAND, EEPROM
and other flash technology
- Device data width: 8, 16 and 32 bit
- Max flash density support: 512Mb with
128M byte Compact Flash Card install on
board (standard offer), can be extend to
128Gb with exchange higher density Compact
Flash Card on system hardware.
|
| |
|
File format
|
- Binary, Intel Hex, Intel Ext
Hex, Motorola S, HP64000 ABS, Straight Hex
|
| |
|
Interface to PC
|
- Accept USB 1.1 or USB 2.0
|
| |
|
PC system requirements
|
- Operating system: Windows 98SE/Me/2000
or Windows XP
- Processor: Pentium and above
- Memory: 256M and above
- Hard Disk: over 100M free space
- CD ROM driver
- Interface: USB 1.1 or 2.0 interface
|
| |
|
General
|
- Power adapter: 65W AC 100-240/47-63HZ
Auto Switch.
- Out put: DC (12V/3A, 5V/6A)
- Operation temp: 5 to 45 degree C
- Safety: CE&LVD certified
- Shipment Weight: 5.0 Kg without modules.
|
